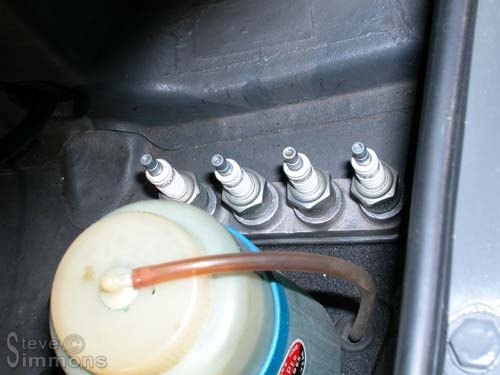

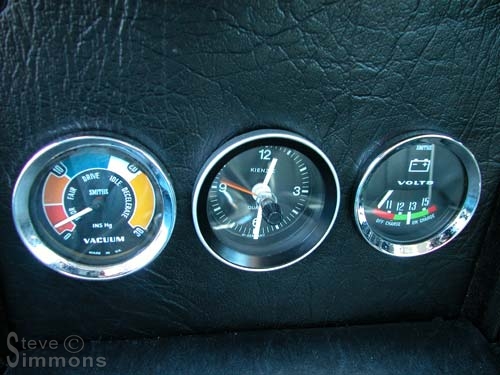

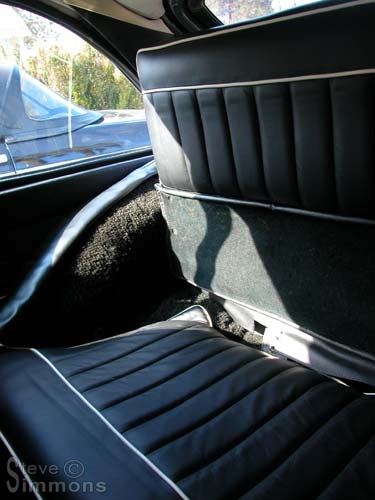

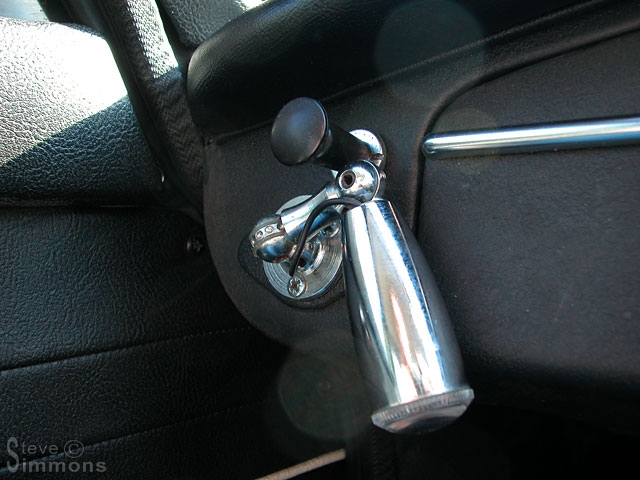

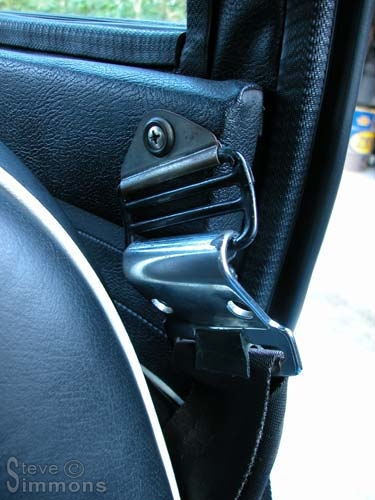

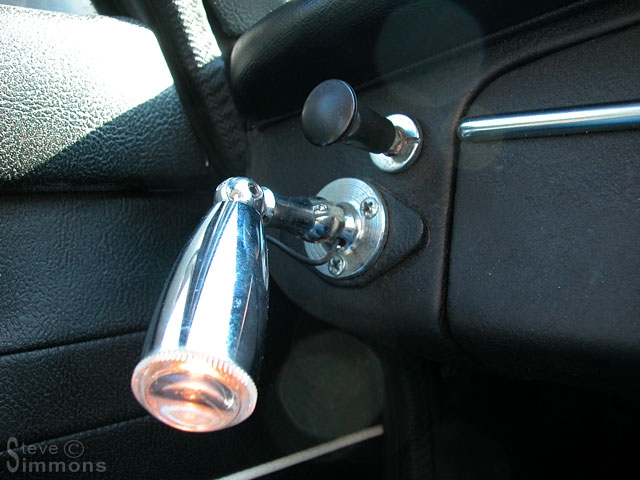

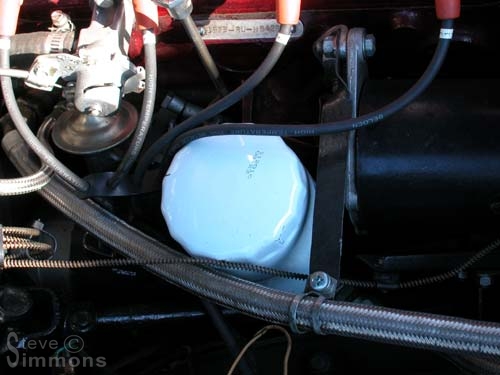

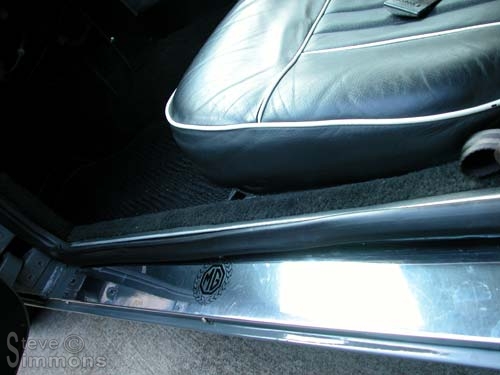

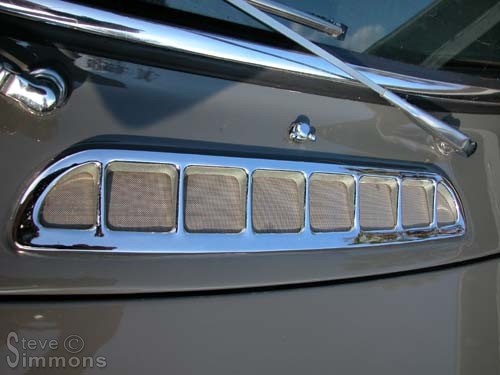

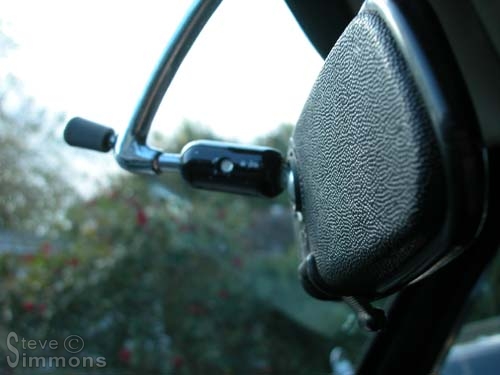

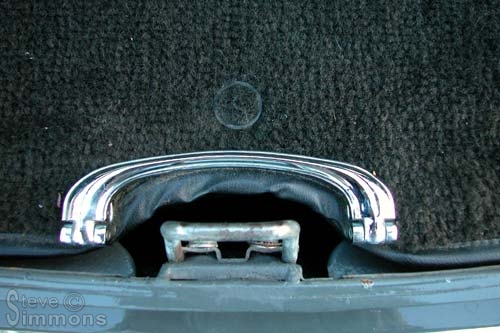

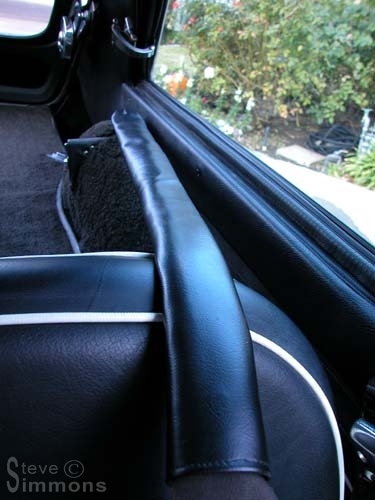

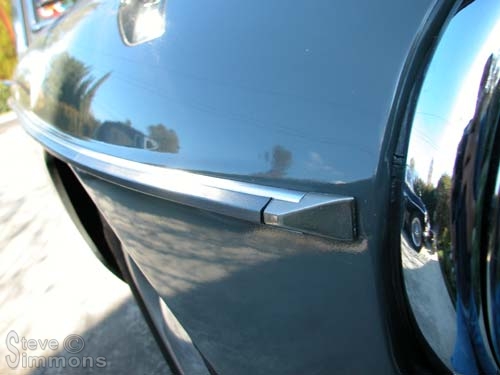

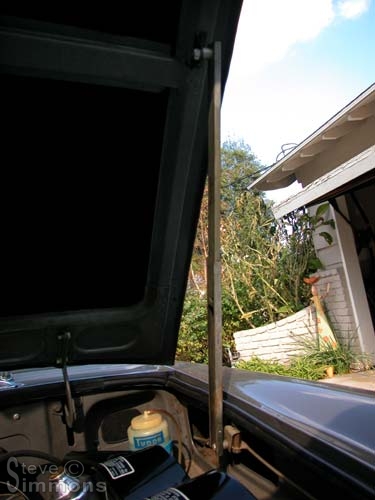

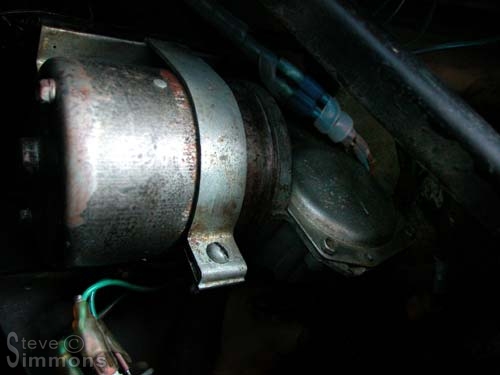

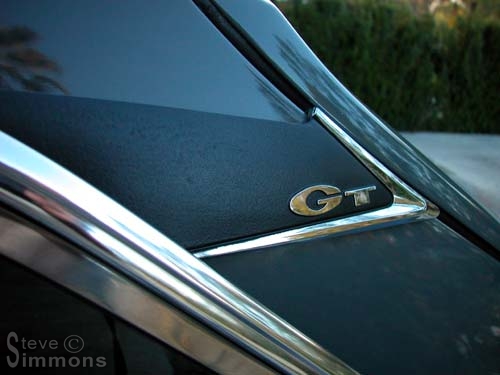

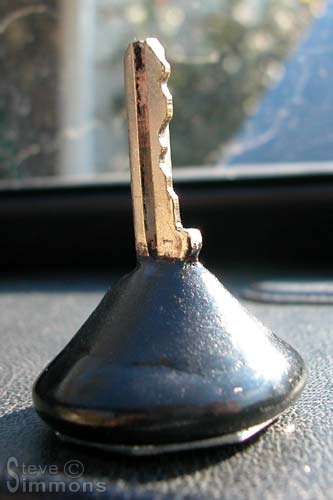

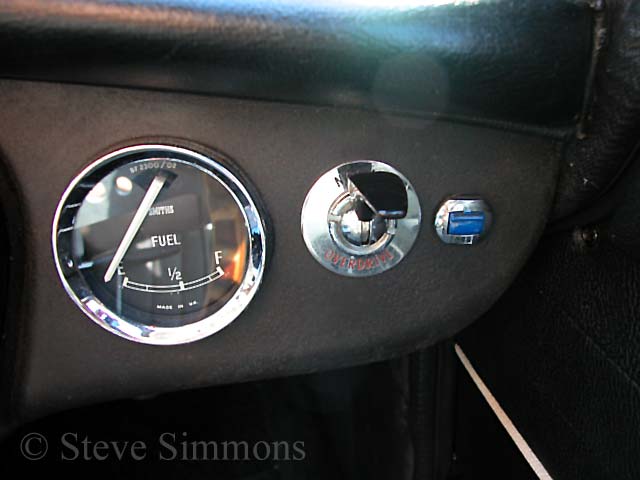

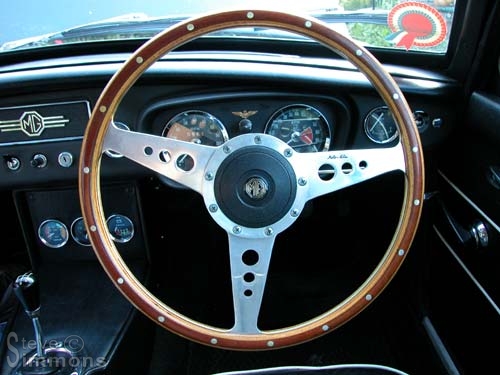

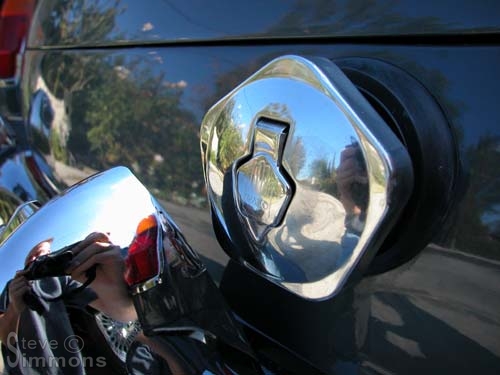

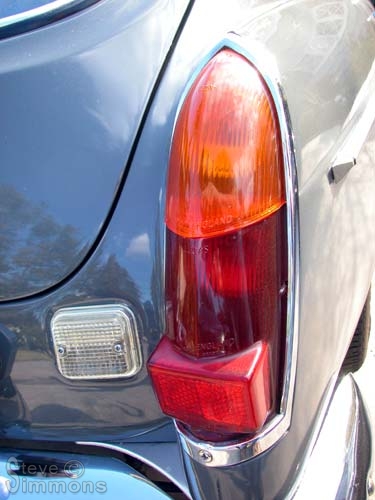

Photos of features, modifications and accessories for the MGB GT. Click on an image to view details…

Accessories that aren’t there anymore…




Cedric’s Technical Specifications

Chassis
Unit Construction body, welded steel construction, front suspension on subframe.
Wheelbase: 7ft 7in
Track Front: 4ft 1.00in
Rear: 4 ft 1.25in

Steering
Cam Gears rack & pinion system.
Turning circle: 32ft
Castor angle: 7 degrees
Camber angle: 1 degree
Kingpin angle: 8 degrees
Toe in: 0.1875in
Grade of oil: SAE 90

Brakes
Disc front, drum rear.
Disk size front: 10.75in
Drum size rear: 10in
Method of operation: Hydraulic. Cable operated parking brake.

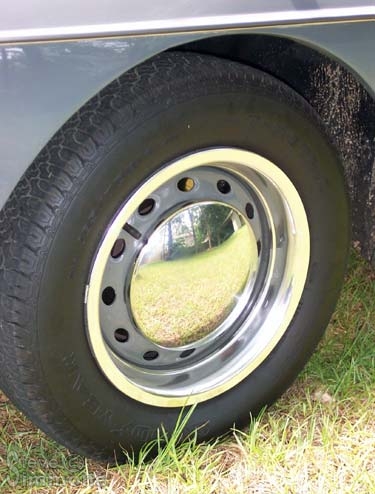

Wheels
Steel disc bolt-on
Rim size: 14, 5J
Tyres: Bridgestone Turanza LS-H, 195/60R14
Tyre pressure: 30psi front, 30 psi rear

Engine
4 cylinder in line, pushrod ohv
Bore: 80.26mm
Stroke: 88.90mm
Cubic capacity: 1824cc
Power output: Estimated 149hp / 149 lbs/ft
Oil pressure: Approx. 70psi. Idle at 25psi
Grade of oil: Valvoline VR-1 20W/50
Sump Capacity: 7.5 pints

Ignition Timing
//-Degrees BTDC
Distributor points gap: 0.015in
Sparking plugs: //
Gap: //

Fuel Delivery

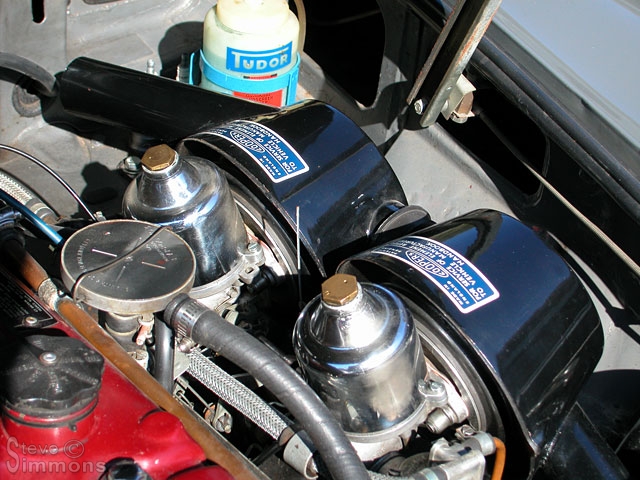

Type: Eaton M45 Blower mated to single HIF44 SU Carburetor

Clutch
Borg & Beck Single dry plate
Material: Ferodo
Number of springs: Single Diaphragm

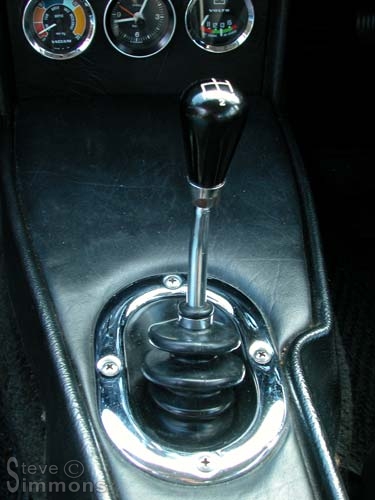

Gearbox
Four speed manual, syncro on 2,3,4
Electrical overdrive (D-Type Laycock)

Gear Ratios
Overdrive: 0.820
Top: 1.000
Third o/d: 1.133
Third: 1.382
Second: 2.2167
First: 3.333
Reverse: 3.095

Oil
Grade of oil: SAE 30
Capacity: 7.7 pints including 3 pints for o/d

Propeller Shaft
Open shaft, needle roller u/j at each end.

Final Drive
Live axle, hypoid bevel gears.
Ratio: Manual 3.909:1
MPH/1000rpm: Manual top: 17.9, o/d: 22.1
Grade of oil: Royal Purple 90W/120
Capacity: 1.5 pints

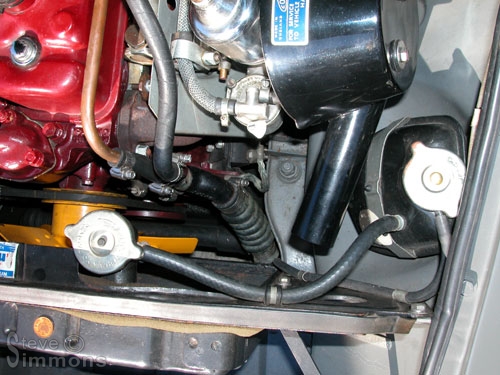

Cooling System
Pressurized, thermostatic control, pump assisted. Capacity: 12 pints.

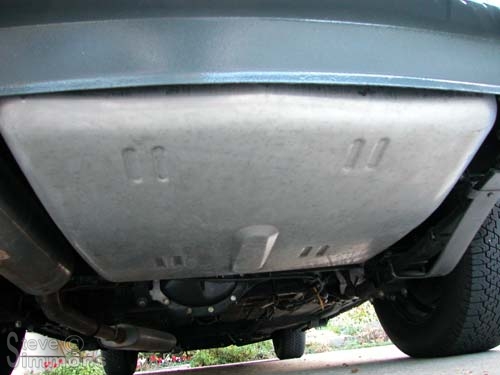

Fuel Tank Capacity
Approx. 12 gallons.

Dimensions & Weight
Wheelbase: 7ft 7in
Track – front 4ft 1in
Track – rear 4ft 1.25in
Overall length – 12ft 9.2in
Overall width – 4ft 11.9in
Overall height – 4ft 1.4in
Ground clearance – 4.5in
Turning circle – 32ft
Kerb weight – 18.5cwt

Performance
Max. Speed – Unknown
Acceleration – 0-60mph Unknown
Fuel consumption – 24 MPG Highway
